d3 4x4pro



The flagship of the d3 pro range, the d3 4×4pro sets a new industry benchmark for power, flexibility and convenience.


More Outputs

With the d3 4×4pro, big shows are easy. The d3 4×4pro packs enough power to Push Every Pixel™ over four 4K outputs, or sixteen HD outputs. This means one d3 4×4pro can replace four conventional media servers with four outputs each.

Less servers means less cost, less complexity, less setup time, less rack space, and more control.

Samsung_4x4_2

More Content

The d3 4×4pro can play up to 32 HD layers of DXV/HAP content, and split this up however you like, with canvas sizes up to 16K pixels across.

Why wait for large video files to be split and distributed? The d3 4×4pro eats them for breakfast.


Dreamforce_2

Better Quality

The d3 4×4pro now supports the high-fidelity HAP-Q codec. Better still, it can play up to eight HD layers of lossless Quicktime Animation.

So now you can respond to the most demanding of clients without breaking a sweat.

Hap_web_2

More Inputs

The d3 4×4pro accepts four channels of HD-SDI (up to 1080p@30) or two channels of 3G-SDI (1080p@60), with just 50 msec latency.

Whether you’re in a theatre, arena, or a stadium, the 4×4pro has the action covered.

Leica_web_2

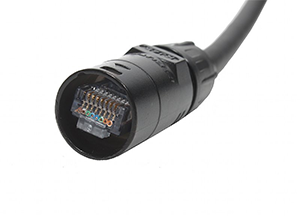

Faster Media Transfer

Twin 10Gbit/sec ethernet connections let you transfer huge files in minutes rather than hours.

For example, if you have 150GB of content, it would take 1 hour 20 minutes to transfer it to four d3 v2.5s. With one d3 4×4pro, this can be achieved in one minute.

Get done early.

Fastermediatransfer

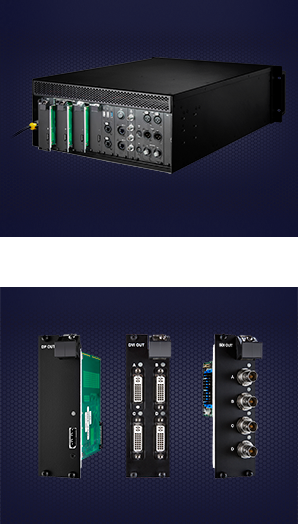

Video Format Conversion Cards

As we transition from HD signal flows to 4K, it’s far from clear which signal standards will dominate. So the d3 4×4pro meets this challenge with an industry first: replaceable Video Format Conversion (VFC) cards.

d3’s VFC cards enable users to drive up to 16HD outputs as DVI or SDI (1080p) or 4×4K DP1.2 from a single d3 4×4pro system. Signals can also be mixed on one system if required. Large multi-projector shows can be delivered with fewer machines, no downstream splitters, and practically no signal latency.

VFC output cards are an industry first: no other media server on the market offers the ability to gracefully transition from HD to 4K as 4K proliferates.

As new signal standards gain popularity, we’ll release new output cards to handle them.

The d3 4×4pro ships standard with 4x DisplayPort 1.2, and Quad-DVI and Quad-SDI cards are available as accessories to the system. The d3 4×4pro comes with an extra, separate output for your control screen (GUI) so all VFC outputs are for your stage.
Read More

Prodpage_imagesvfc

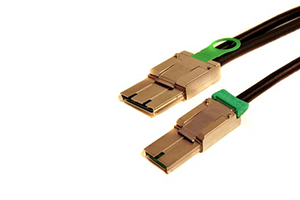

External PCIe

The d3 4×4pro’s external PCIe slot allows you to install our coming range of hardware accessories. Whether it’s more SSD storage, more channels of video capture, or generative content rendering, the d3 4×4pro will go there with you.


Pcie_web_2_editied

Chassis

The d3 4×4pro is much more than just a computer – it’s a rugged media server.

Its aluminium and steel chassis is internally braced for incredible rigidity and robustness, but it’s still light enough for one person to lift.

D3_logo_web_2

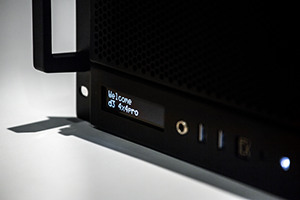

Front Panel

The minimal front face has an OLED display so you can easily identify the machine and its status. The front also features twin USB3.0 ports for plugging in content drives.

Opening the front gives you access to the fan filters and the military-grade RAID0 SSD enclosures (up to 8TB).

D3_ledpanel_web_2

Rear Panel

The rear panel sports next-generation lockable Neutrik True1 power. If you lose the cable, you’ll still be able to access the IEC.

All connectors – from ethernet to video to genlock to pro-audio – are lockable, robust, and easily replaceable. We’ve even added an LED worklight so you don’t have to fumble around in the dark.




Push Every Pixel™

Push Every Pixel™ is our benchmark for the playback power needed by video professionals everywhere.

Push Every Pixel™ means that a machine has enough power to fill every physical pixel of its outputs with at least two simultaneous layers of content.

With powerful Xeon processors, workstation-grade GPUs, terabytes of RAID-0 SSD storage, and lightning fast 10Gbits/sec ethernet, the d3 4×4pro is designed from the ground up to meet this challenge.

D3_power

Availability

The d3 4×4pro is shipping now, with 4x DisplayPort 1.2 VFC outputs as standard. Other VFC cards are available as accessories. Every d3 4×4pro has a separate GUI control output as well.

Please email sales@d3technologies.com for your d3 4×4pro quote today, fill in our enquiry form, or call us on +44 207 234 9840.

Tech Specs d3 4x4pro

Bundled Software
d3 Proprietary Full d3 Production Suite
3rd Party GoToAssist, DMX Workshop
Media File Specifications
Video Playback .mov (anim, pjpg, DXV*, Hap, Hap Q) *N.B. DXV3 not supported
Still image formats .png, .jpeg, .bmp, .tiff, .tga
Audio file formats .mp3, .wav (44.1kHz, 16-bit, stereo)
3d mesh format .obj
Physical Specifications
Rack Depth     585mm (23.03")
Unit dimensions W: 445mm (17.52'') H: 178mm (7'') D: 593mm (23.35'')
Unit + Rack Handles     621mm (24.45'')
Unit weight     19.5kg (43lb)
Packed dimensions W: 711mm (28'') H: 508mm (20'') D: 737mm (29'')
Packed unit weight     26kg (57lb)
Mounting system     4U 19” rack mount
Hardware Specifications
Voltage 100-240V,50-60Hz,13 amps
Power Consumption 800W @ 110V (normal), 1000W @ 110V (max)
Operating System Windows 8.1 Embedded Pro
CPU 2 x Xeon Hexa-Core 3.5Ghz
Memory 32GB DDR3 ECC RAM
Environmental Tolerances Temperature: 5-35°C (40°-95°F)
Humidity: 5%-95% (non-condensing)
Altitude: 0-8850 ft (0-2700m)
Audio RME Professional
Storage 2 x 80GB SSD (Internal System Drive, Restore Drive)
2TB Removable SSD RAID Array
System Connectivity - I/O
Video Output 4 x DisplayPort 1.2
(4096 x 2160 max) native
Other VFC cards available
Video Input 4 x HD-SDI or 2x 3G-SDI
Analogue audio 2 x Balanced XLR In
2 x Balanced XLR Out
1 x 1/4" Headphones Jack
Digital Audio ADAT/SPDIF I/O
MIDI 1 x In
1 x Out
General Network 1 x Gigabit LAN
Artnet 1 x Gigabit LAN
Media Network 2 x 10Gb/sec LAN
Data/Peripherals 2 x USB 2.0
3 x USB 3.0
1 x Firewire 800
Video Sync BNC Genlock
Bundled accessories
Bundled accessories Keyboard
Mouse + Mouse Mat
Power Cable (Plug-True1)
Power Daisy Chain (True1-True1)
Getting Started Guide + Manual
Backmounted Rails
Support, Updates and Warranties
License subscription package includes 2yrs hardware warranty
(Return To Base)
Free software upgrades (hardware only)
24/7 support (via phone or email)
Unlimited knowledge base access



d3 4x4pro Performance data*

Video outputs only 1 (.mov) 2
HAP/DXV 32**
HAP-Q 16
DXV with Alpha-Channel 16
Photo-JPEG 8
Animation with Alpha 8
Video output & HD-SDI input 3 (.mov)
HAP/DXV 32**
HAP-Q 16
DXV with Alpha-Channel 16
Photo-JPEG 8
Animation with Alpha 8
Video output, HD-SDI input & DMX output 4 (.mov)
HAP/DXV Coming soon
DXV with Alpha-Channel Coming soon
Photo-JPEG Coming soon
Animation with Alpha Coming soon

* Based on r11.2 with four drive RAID0 configuration.

** These figures are based on an average video bitrate of 19MB/s. Performance may vary depending on specific project setup. (live video input, Bitmaps, screen resolutions, etc.)

*** Based on 8 layers of 4K (3840x2160) playing simultaneously

1 4 x 1920x1080 @ 60Hz, Gen-locked output heads with the same resolutions.

2 Quicktime Codecs

3 As above, with the addition of 1 x 1080i live video input. d3 running in Full Speed Mode.

4 As above, with the addition of 10 universes of DMX output.



Compare products

  d3 Designer 2x2plus 2x4pro (NEW) 4x4pro 4x2pro (discontinued)
Software
Pre-Vis in 3d
Simulate projectors
Sequence to the beat
Configure multiple outputs feeds
Render stage movies
Render feed movies
Render feed max size 2048 8192 16384 16384 16384
Set-up device integration
Act as session editor
Live camera input Hardware Specific Hardware Specific
Act as Master
Act as Slave
Act as Understudy
MultiEdit
Receive device signals Hardware Specific
Output to screens Watermarked
Output DMX Watermarked
Hardware
VFC card support Not Applicable
Chassis Not Applicable 2U Industrial Rackmount Case / Custom face d3 designed rugged chassis d3 designed rugged chassis d3 designed rugged chassis
Digital Outputs Not Applicable 2x DL-DVI + 1x DVI Varied by output card Varied by output card 4x DL-DVI
Illuminated rear panel Not Applicable
PCI-E expansion connector Not Applicable
10Gbit media network ports Not Applicable 2 2 1
1Gbit network ports Not Applicable 2 2 2 2
Rear mounting brackets Not Applicable
Neutrik rugged connectors Not Applicable
Replaceable rear connector plates Not Applicable
OLED text status display Not Applicable
USB speed Not Applicable 3.0 3.0 3.0 3.0
FW 800 Not Applicable
CPU Not Applicable 3.7Ghz Xeon Quad Core 3.7Ghz Xeon Quad Core E5 3.5Ghz Xeon Hexa Core E5 2.6Ghz Xeon Hexa Core
Max texture size px Not Applicable 8192 16384 16384 16384
Replaceable media drive caddies Not Applicable 4x Ruggedised SSD caddy 2x Ruggedised SSD caddy
Media drives capacity (shipped) Not Applicable 1x 512GB 1x 2TB 2x 1TB 1x 1TB
Max SSD drive allowed Not Applicable 1 8 4
Max 3G-SDI inputs Not Applicable Hardware Specific 2 2 2
Max HD-SDI inputs Not Applicable Hardware Specific 4 4 4
Max SD-SDI inputs Not Applicable Hardware Specific 4 4 4
Genlock in Not Applicable
Balanced audio in/out Not Applicable Hardware Specific
Locking power connector & pass thru Not Applicable
MIDI in/outputs Not Applicable Hardware Specific
ADAT I/O Not Applicable Hardware Specific
Art-Net (via ethernet) In/Out Not Applicable



  d3 4×4pro Specification sheet Download

  d3 pro range dimensional specification sheet Download

  d3 4×4pro user replaceable Video Format Card Specification sheet Download

  d3 4×4pro VFC Hardware Installation Guide Download
